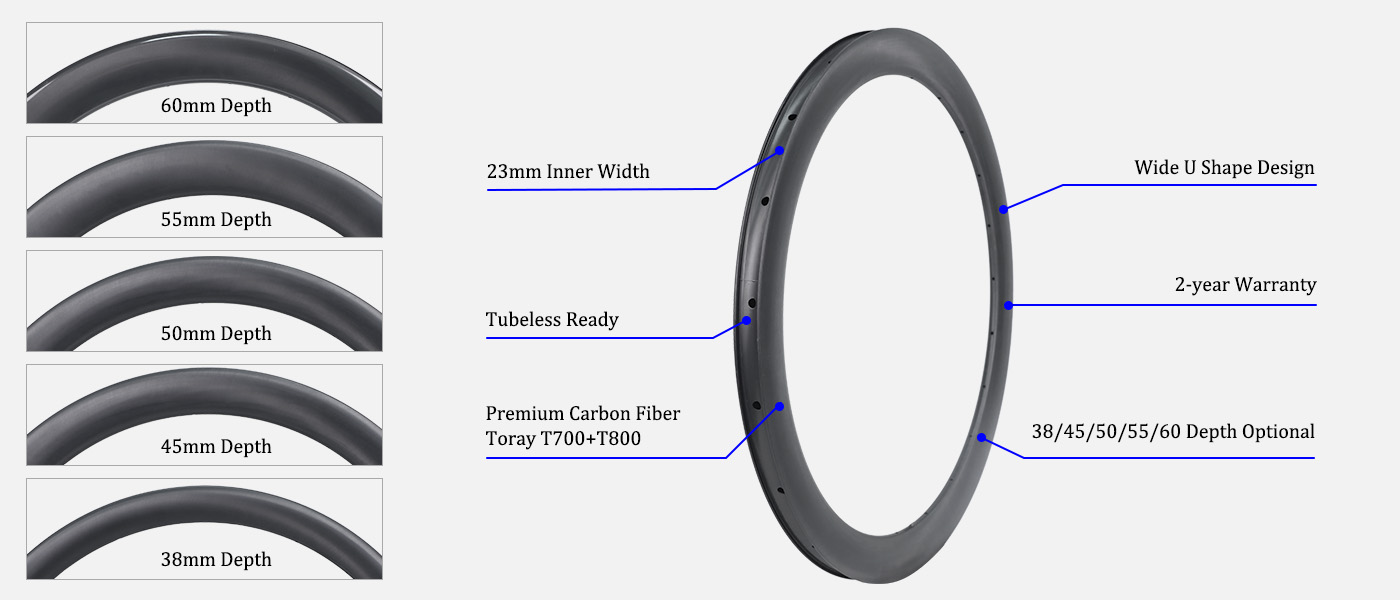

• Widened 23mm Inner Width, for 30C-50C tires

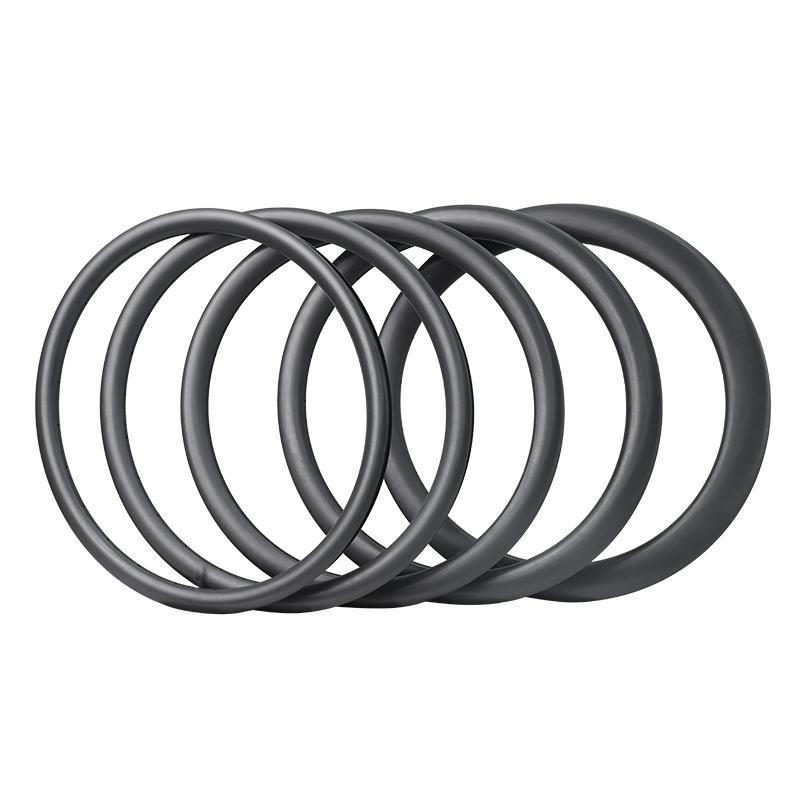

• Depth option: 38/45/50/55/60mm
• Tubeless ready
• Wide U shape design, more aero and stiff
• High quality, 2-year warranty
Marque:
PROXArticle no.:
PRD29-CPaiement:
Paypal, Bank TransferOrigine:
ChinaCouleur:
UD/3K/Marble(Customized Decal Acceptable):
Largeur interne élargie de 23 mm jante de route en fibre de carbone est lancée. Conçue pour les cyclistes qui refusent de se contenter de peu. Optimisée aérodynamiquement et disponible en cinq hauteurs polyvalentes (38/45/50/55/60 mm), cette série de jantes redéfinit les possibilités sur la route.
Conçue pour la pratique du vélo de route moderne, le profil de jante plus large supporte sans effort des pneus plus grands (taille 30-50 mm), améliorant ainsi l'adhérence, le confort et la stabilité. Dites adieu aux crevaisons et bonjour aux virages plus fluides et aux descentes en toute confiance.
L'efficacité aérodynamique rencontre la polyvalence : choisissez votre arme
38 mm :Le choix ultime du grimpeur : léger comme une plume, réactif et parfait pour l'escalade.
45/50 mm : Les chaussures polyvalentes et équilibrées : suffisamment agiles et aérodynamiques pour les échappées en solo.
55/60 mm : Les passionnés de vitesse se réjouissent. Maximisez vos gains aérodynamiques sur le plat, les contre-la-montre et les sprints avec un minimum de compromis sur le vent latéral.
L'autocollant/logo ProX est offert gratuitement, comme indiqué sur la page autocollant ProX si l'autocollant est en stock. L'autocollant sera appliqué sur la jante et aura une finition mate ou brillante selon les préférences du client. Vous pouvez choisir avec ou sans autocollant ProX (finition UD noir mat ou UD noir brillant).
Votre prochaine avancée commence ici : plus large, plus rapide, plus intelligent.

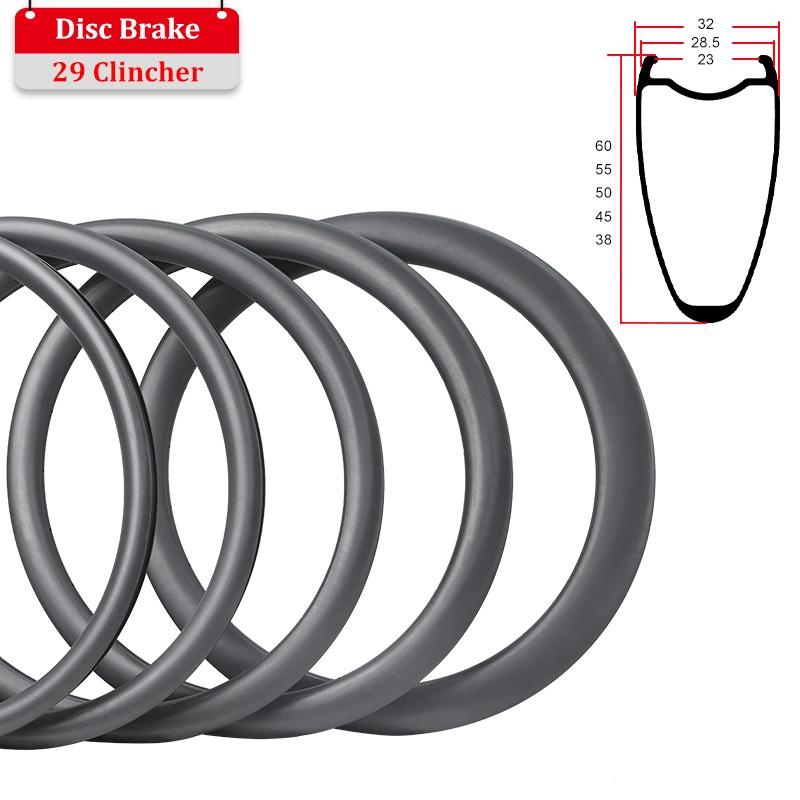

ProX Road Disc 23mm Inner Width Disc Brake Carbon Road Rims 700C Tubeless Ready
| Model | PRD29-38C | PRD29-45C | PRD29-50C | PRD29-55C | PRD29-60C |
| Terrain(Recommended) | Road | Road | Road | Road | Road |
| Material | T700+T800 | T700+T800 | T700+T800 | T700+T800 | T700+T800 |
| Weight(±15g) | 390g | 400g | 430g | 460g | 480g |
| Max Weight Limit | 105kg/230lb | 110kg/240lb | 110kg/240lb | 115kg/250lb | 120kg/265lb |
| Depth | 38mm | 45mm | 50mm | 55mm | 60mm |

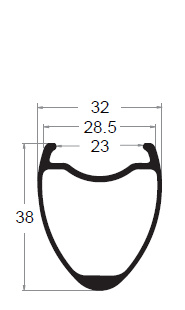

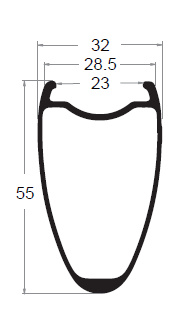

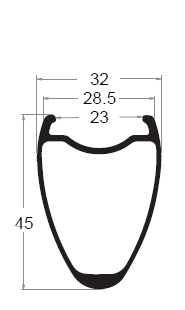

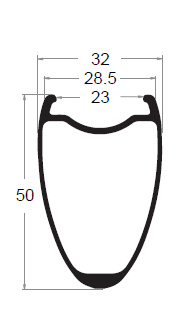

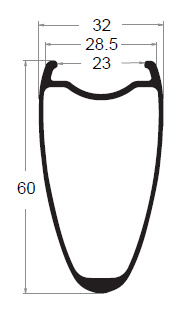

| Sectional Drawing |  |  |  |  |  |
| Outer Width | 28.5mm | 28.5mm | 28.5mm | 28.5mm | 28.5mm |
| Inner Width | 23mm | 23mm | 23mm | 23mm | 23mm |
| Spoke Holes | 21H/24H/28H/32H | 21H/24H/28H/32H | 21H/24H/28H/32H | 21H/24H/28H/32H | 21H/24H/28H/32H |
| ERD* | 564mm | 550mm | 540mm | 530mm | 520mm |
| Rim Bead | Hook | Hook | Hook | Hook | Hook |
| Tire Type | Tubeless or Clincher | Tubeless or Clincher | Tubeless or Clincher | Tubeless or Clincher | Tubeless or Clincher |
| Brake Type | Disc Brake | Disc Brake | Disc Brake | Disc Brake | Disc Brake |
| Max Spoke Tension | 130kgf | 130kgf | 130kgf | 130kgf | 130kgf |
| Max Tire Pressure | 125psi/8.6bar | 125psi/8.6bar | 125psi/8.6bar | 125psi/8.6bar | 125psi/8.6bar |
| Tire Size(Recommended) | 700*30C-50C | 700*30C-50C | 700*30C-50C | 700*30C-50C | 700*30C-50C |
ERD* Effective Rim Diameter (ERD) is the maximum distance that spokes need to bridge going from one end of the rim to another. How do we calculate the ERD of our rims? The corresponding equation and a drawing is as shown: ERD=OD-(rim depth)*2+(rim thickness)*2 For example： ERD of PRD29-38C rim=633mm-38mm*2+3.5mm*2=564mm Most people prefer ERD including the length of the nipple cap. However, customers may use different nipples and components for building. Please add the height of the nipple cap(2.5mm~3mm generally) for your spoke calculation. If the height of the nipple cap is 3mm, then ERD of your PRD29-38C rim is 564mm+3mm*2=570mm A: Rim nipple bed thickness (=3.5mm) B: Length of nipple cap (2.5mm~3mm generally)
 |
Carbon Fiber Material Premium Toray T700 + T800 carbon fiber are used in our carbon rims. Combining with stable resin system to make consistent quality and light weight road bike carbon rims.
|
 | Light Weight By using well designed lay-up structure, mixing Toray T700 and T800 carbon prepreg, light weight carbon rims are created. Excessive materials are eliminated to save weight, while extra materials are added around spoke hole for reinforcement. So, light weight is achieved without compromise in strength or stiffness. |
 |
Wider Inner Width
Wider 23mm inner width, optimized for increasingly popular 700x30C-35C tires (also fit even wider tires). Wider stance for tire, easy tire mounting and dismounting. Better traction and cornering performance.
|
 | Aero U Shape Wide U Shape carbon road rims are more aerodynamic than traditional V Shape road bike carbon rims. It is also of better stiffness and strength.
|
 | Bead Lock There are small ridges on both side of rim channel called “bead lock”, which makes it easy for tubeless tire inflation. Together with hooked bead to well lock the tire, prevent it from blowing out.
|
 | Tubeless Ready
Tubeless tire is getting popular in road bike carbon wheels thanks to its better traction, lower rolling resistance and better riding comfort. All our carbon clincher rims are tubeless ready (also fit normal tube tires). Optimized anti-burp bump design provides easy tire mounting, dismounting, as well as air inflation. |
 | Road Disc Brake
Road disc brake provides more sensitive and precise braking performance than rim brake. Carbon fiber road bike rims designed specifically for disc brake use, no brake track. No “burning rim” worries during braking. Specific carbon prepreg lay-up design for disc brake rims, longer durability and lighter weight.
|
 | 2-Year Warranty We have strict production management system, QC and Testing process. Our quality is always very good and reliable. For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed). Click Warranty Policy to see more details in another page. |
